Mitutoyo Tubular Inside Micrometer Carbide Tipped(137-209)

Mitutoyo Tubular Inside Micrometer Carbide Tipped(137-209)

SKU : 137-209
(0 Customer review)
₹21,641.20 including GST @18% 18,340.00

50-1000mm

Range : 50-1000mm Digital/Analog : Analog Inch-Metric : Metric Least count : 0.01mm
Categories: Tubular Inside Micrometers Brand: Mitutoyo
Add to Cart Add to Cart

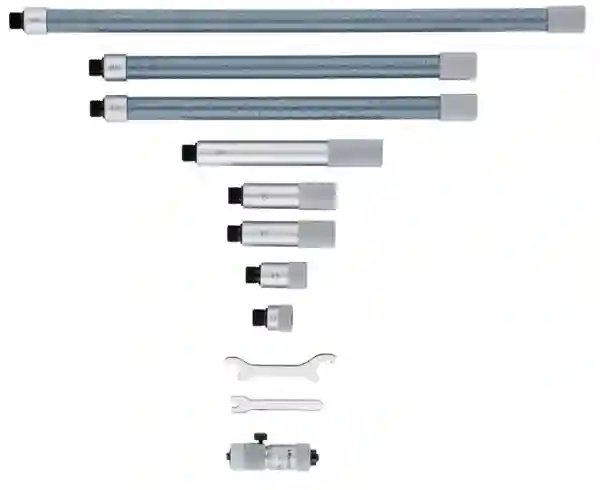

This is an extension rod type inside micrometer that offers you the following benefits:

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
50 - 1,000 mm
Measuring span:
13 mm
Graduation:
0.01 mm
Spindle feed error:
3 µm
Limit of error:
±(3+number of rods+max. measurement length/50) µm
Scale:
Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:
Spindle pitch 0,5 mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm)
Delivered:
Including box, key, micrometer head
Mass:
845 g
